AllStar 500W eBike

TAKE THE FUN WITH YOU

COLORS

Video

GALLERY

SPECS

AllStar

DOWNLOAD BROCHURE

MOTOR / BATTERY / DRIVE TRAIN

Motor:	500W Bafang Motor
Battery:	48V 12.8 Ah Panasonic 3200 Cells
Charge Time:	4-6 Hours

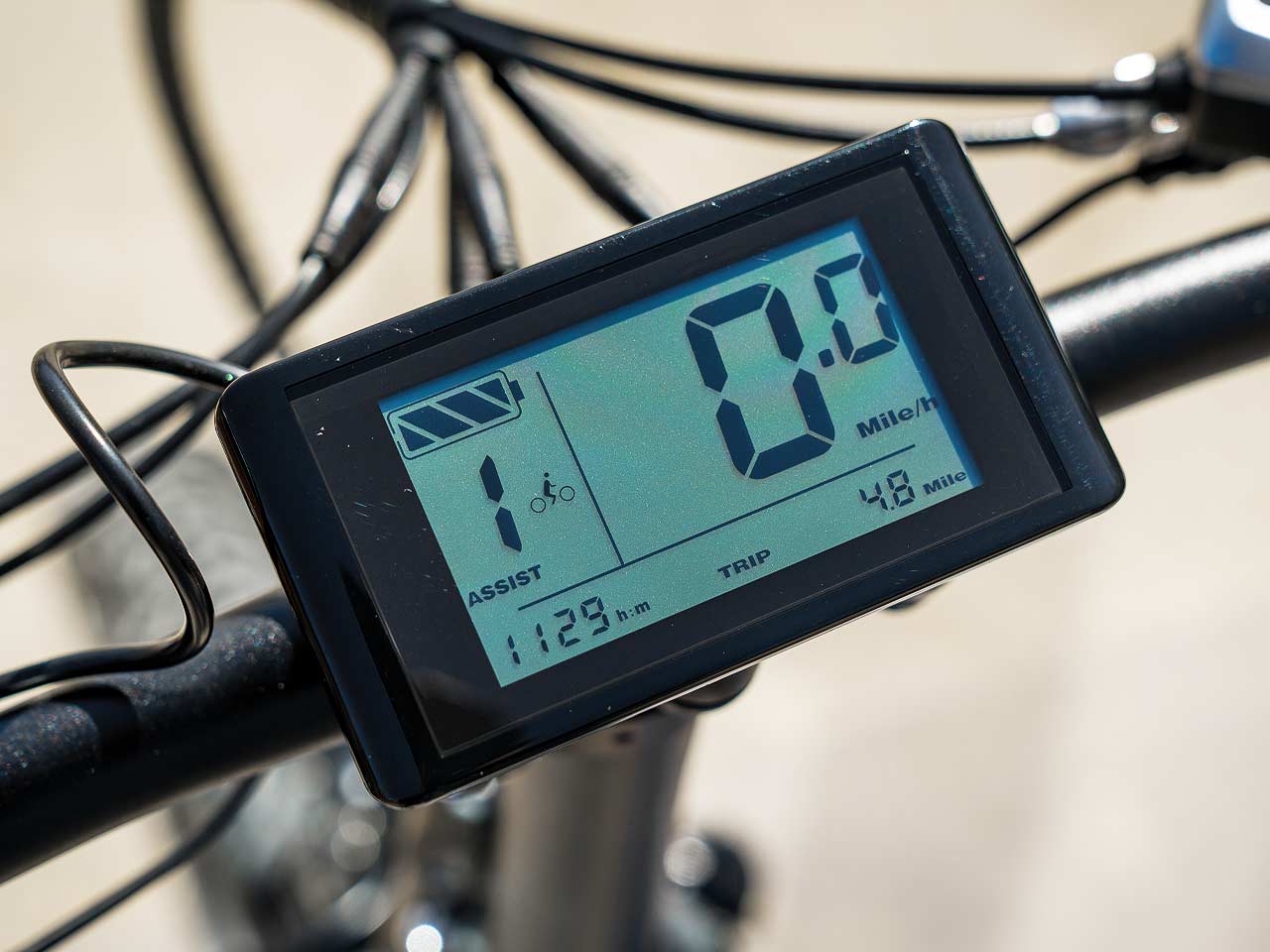

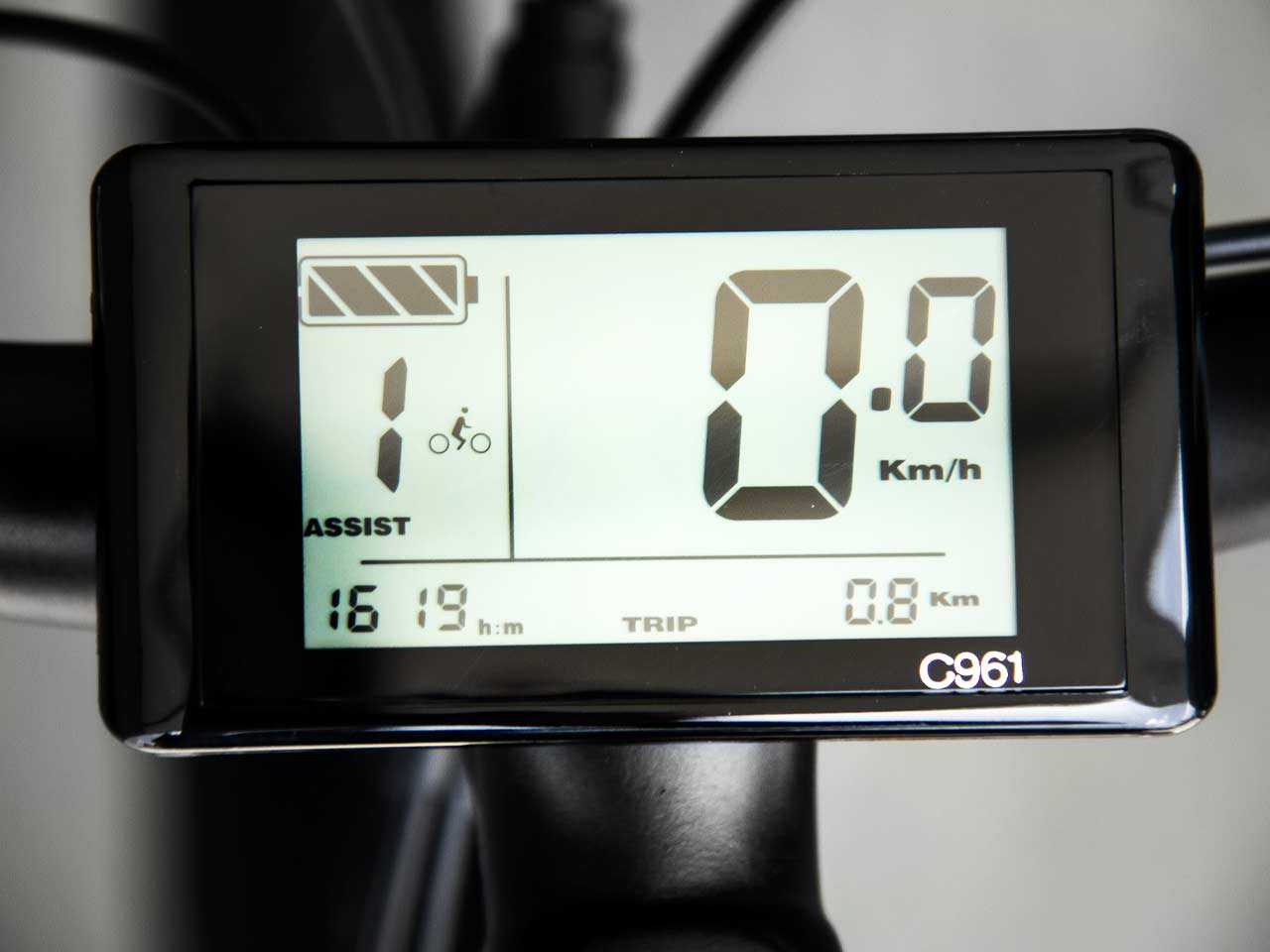

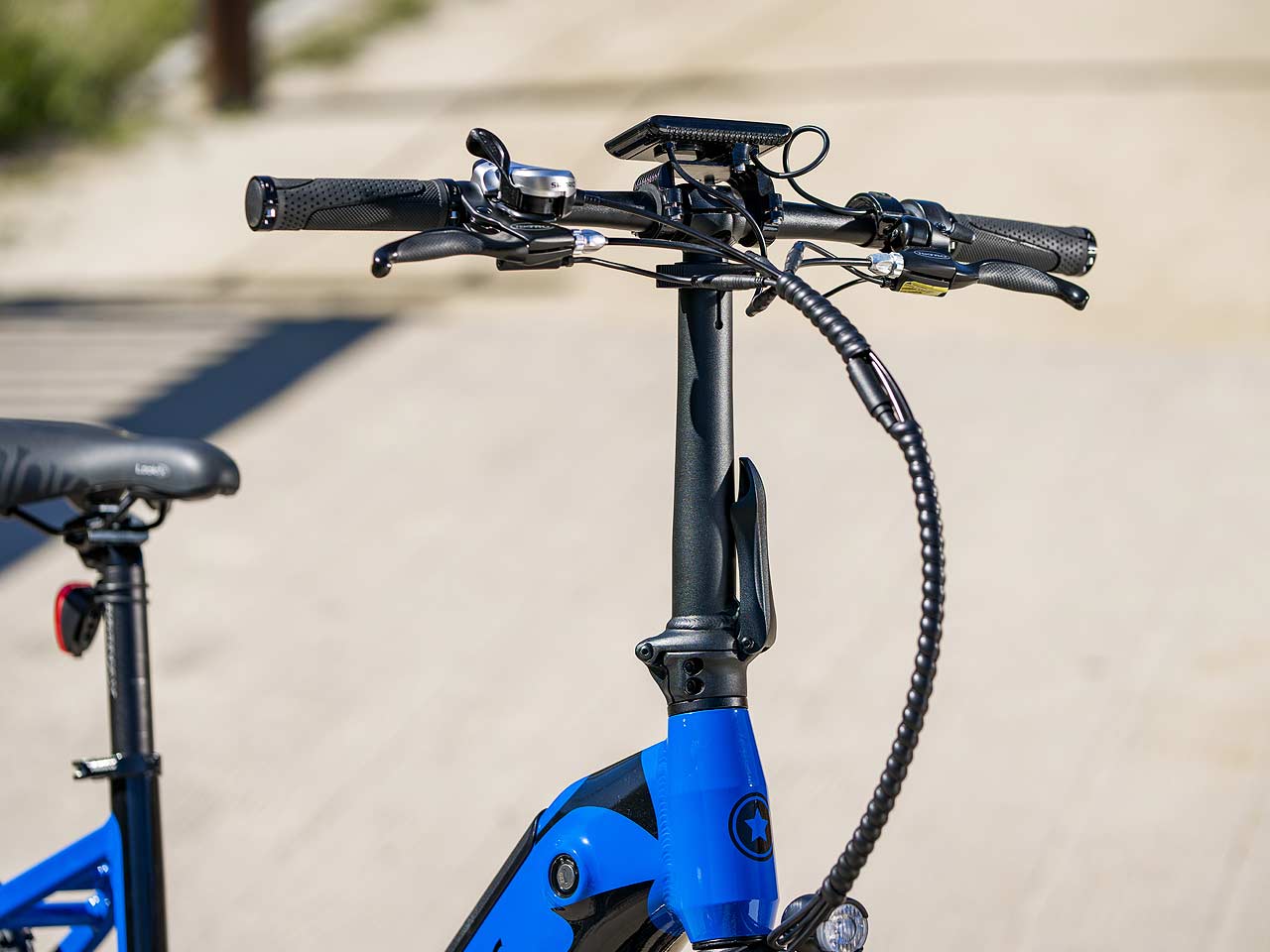

Display:	Bafang C961 LCD
Drive Mode:	Cadence Sensing
Top Speed:	25 mph
Range:	25-50 miles Estimated

CHASSIS / SUSPENSION / BRAKES

Frame:	6061 Aluminum Alloy

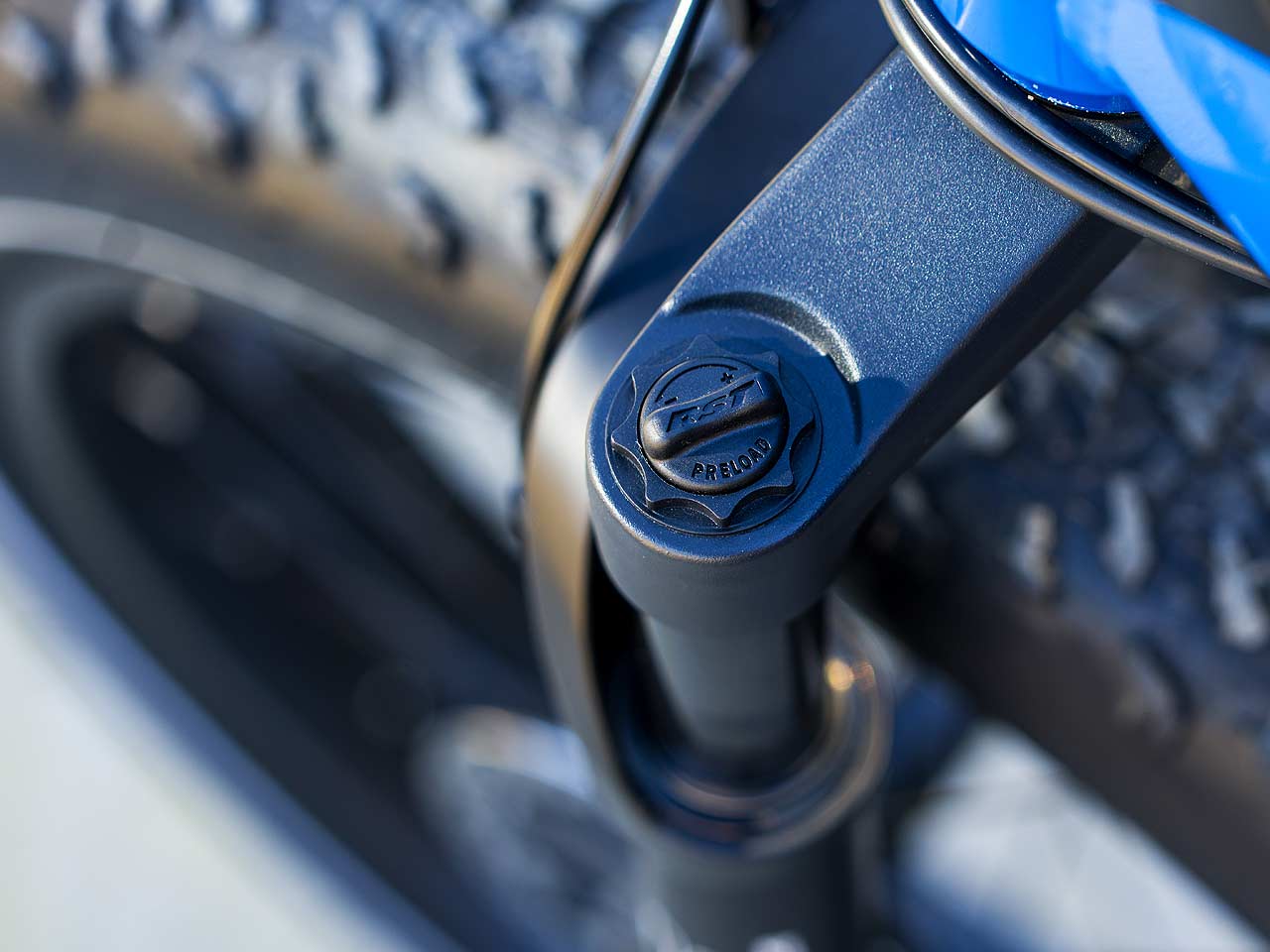

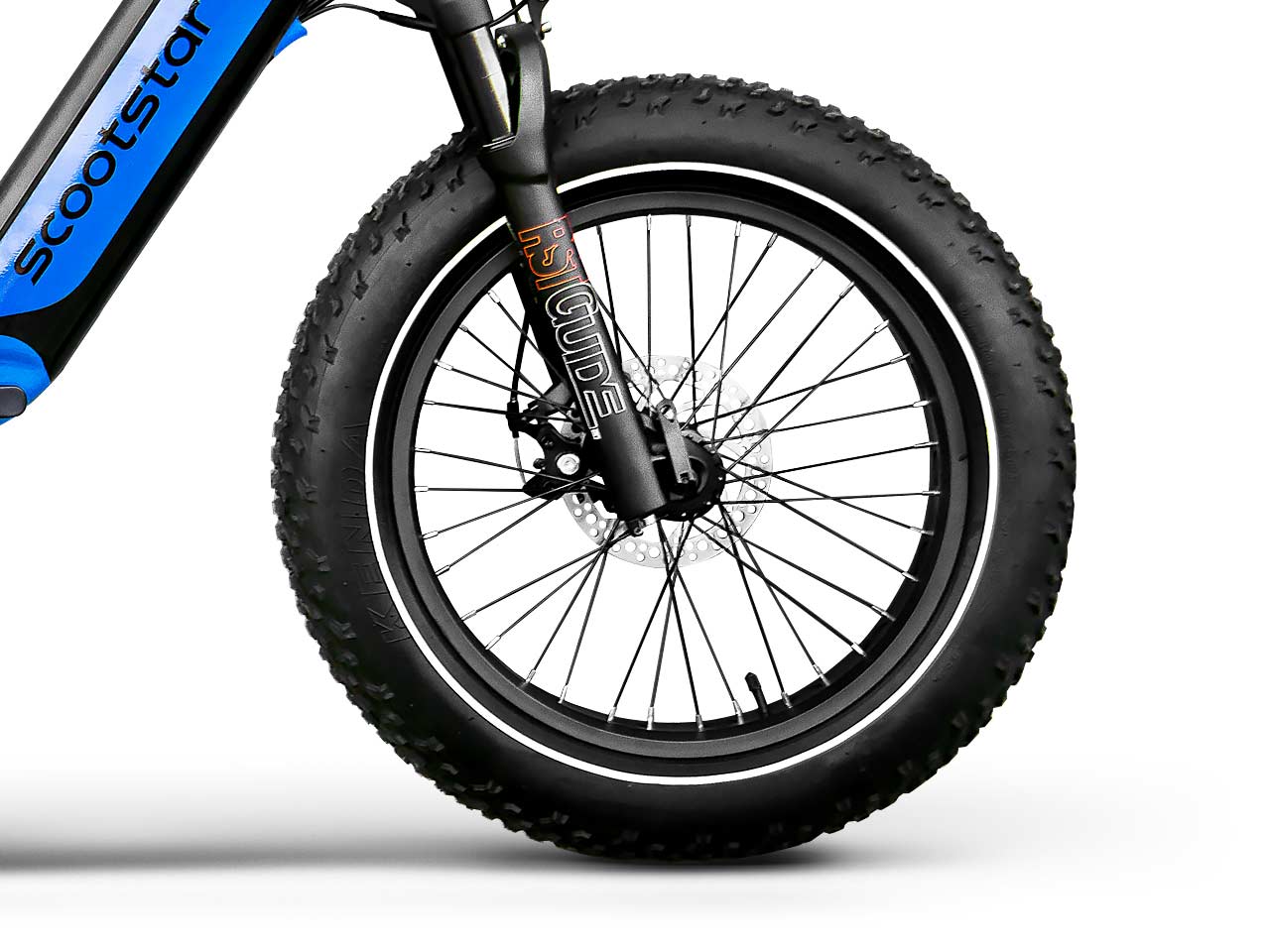

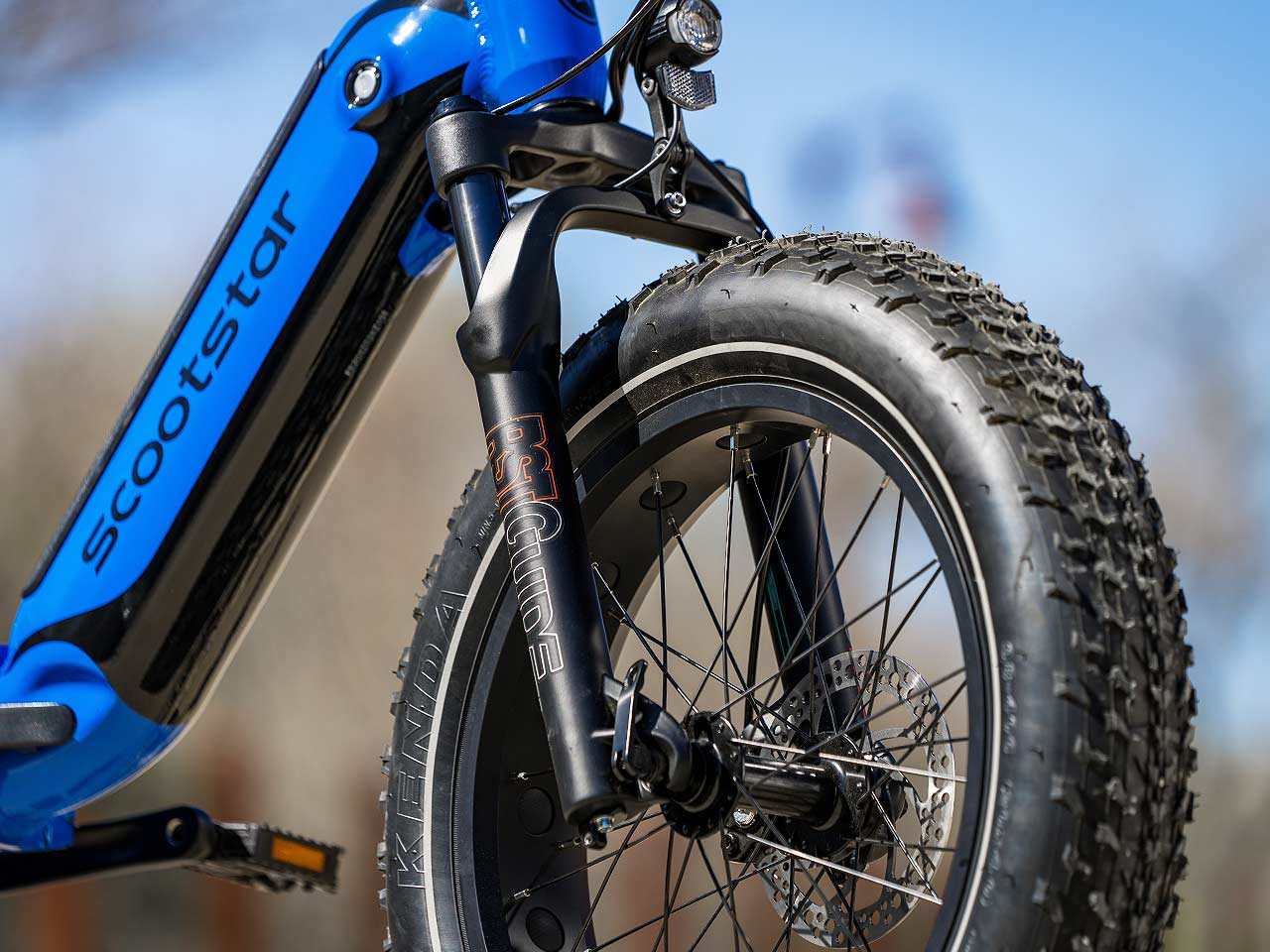

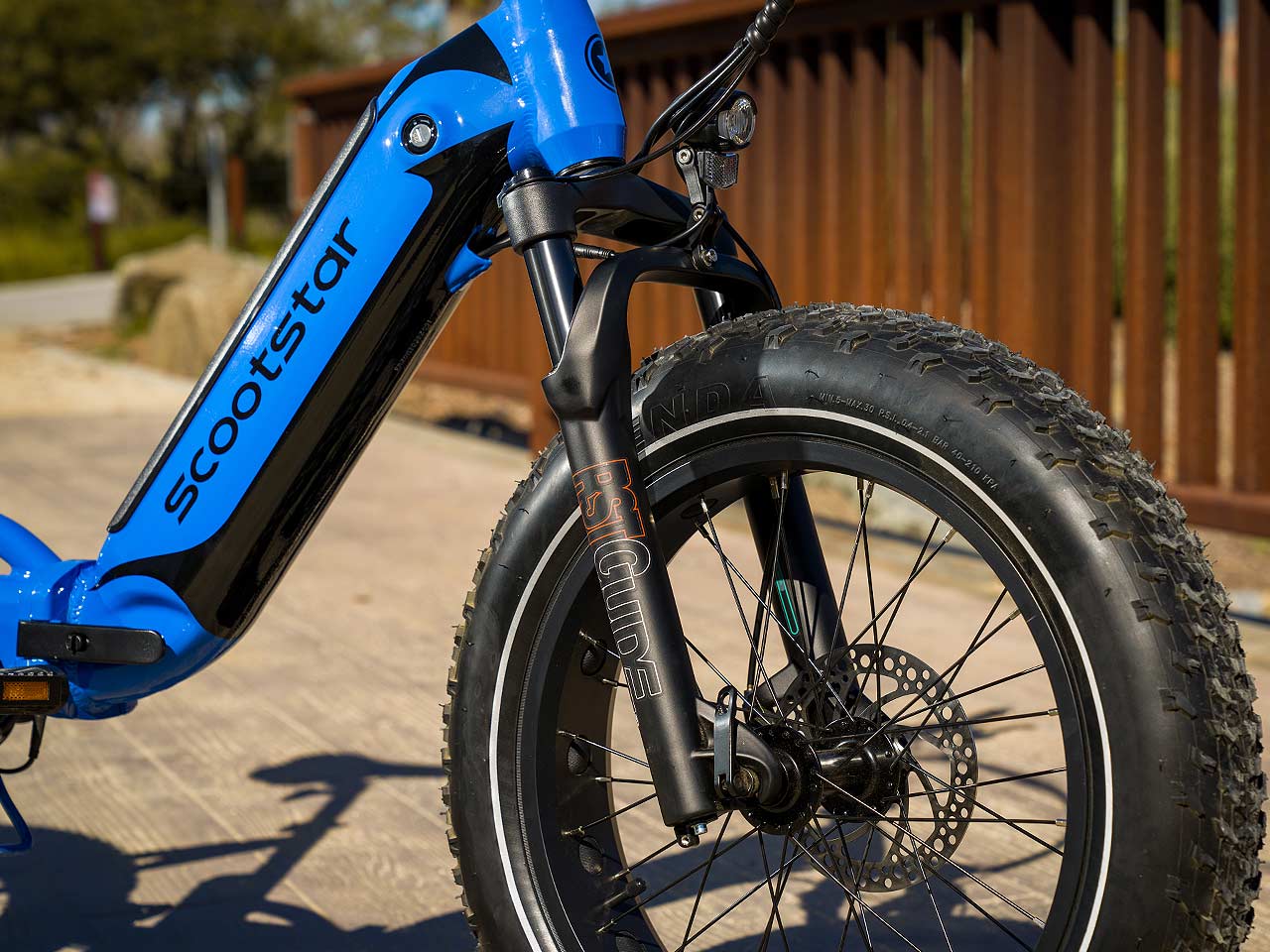

Front Suspension:	RST Guide Suspension Fork
Rear Suspension:	Aluminum Alloy
Front Brakes:	Tektro Hydraulic Disc Brake
Rear Brakes:	Tektro Hydraulic Disc Brake

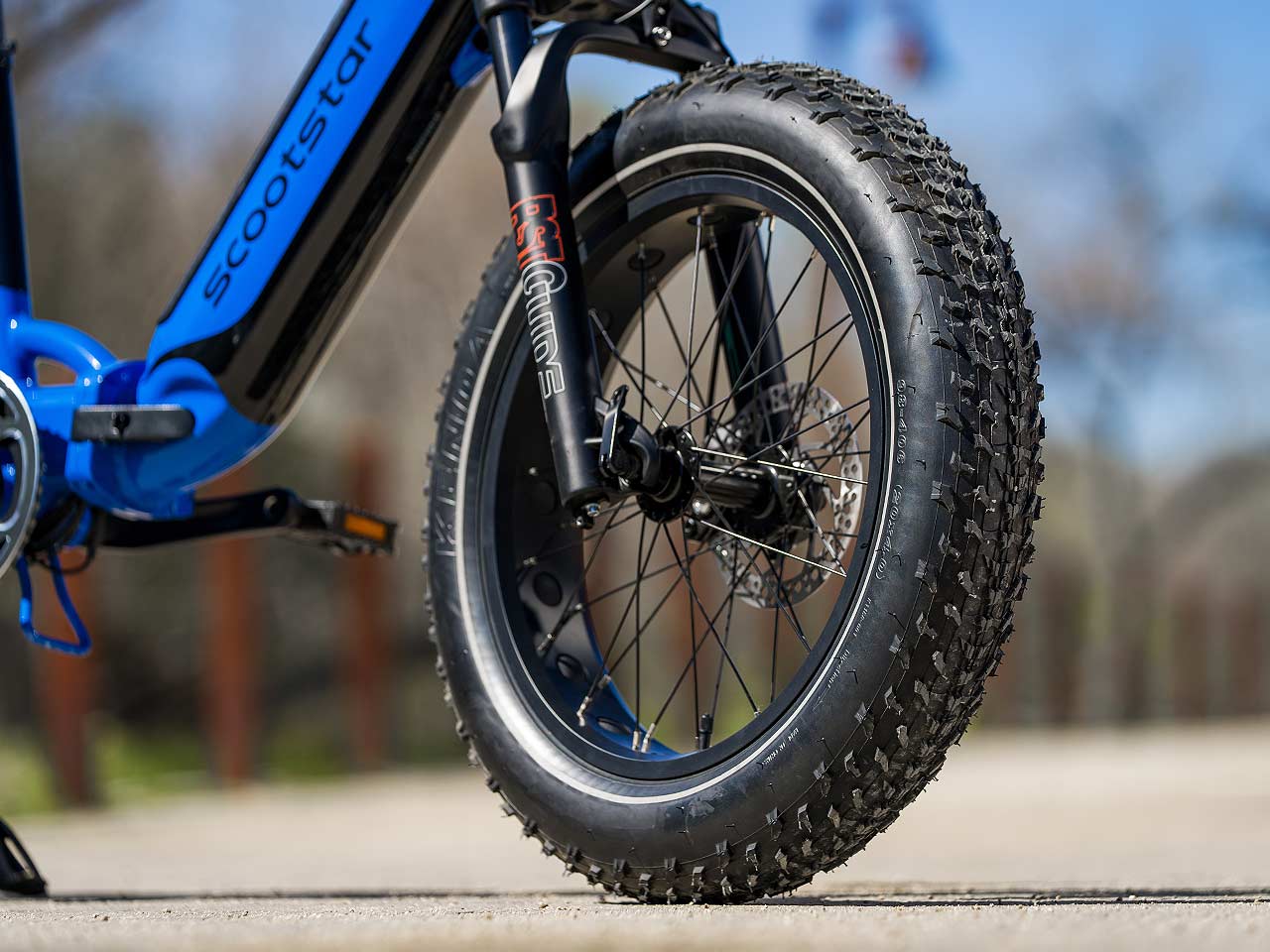

Front Tires:	Kenda 20 x 4.0 Fat Tires
Rear Tires:	Kenda 20 x 4.0 Fat Tires
Wheels:	Aluminum Alloy 20”

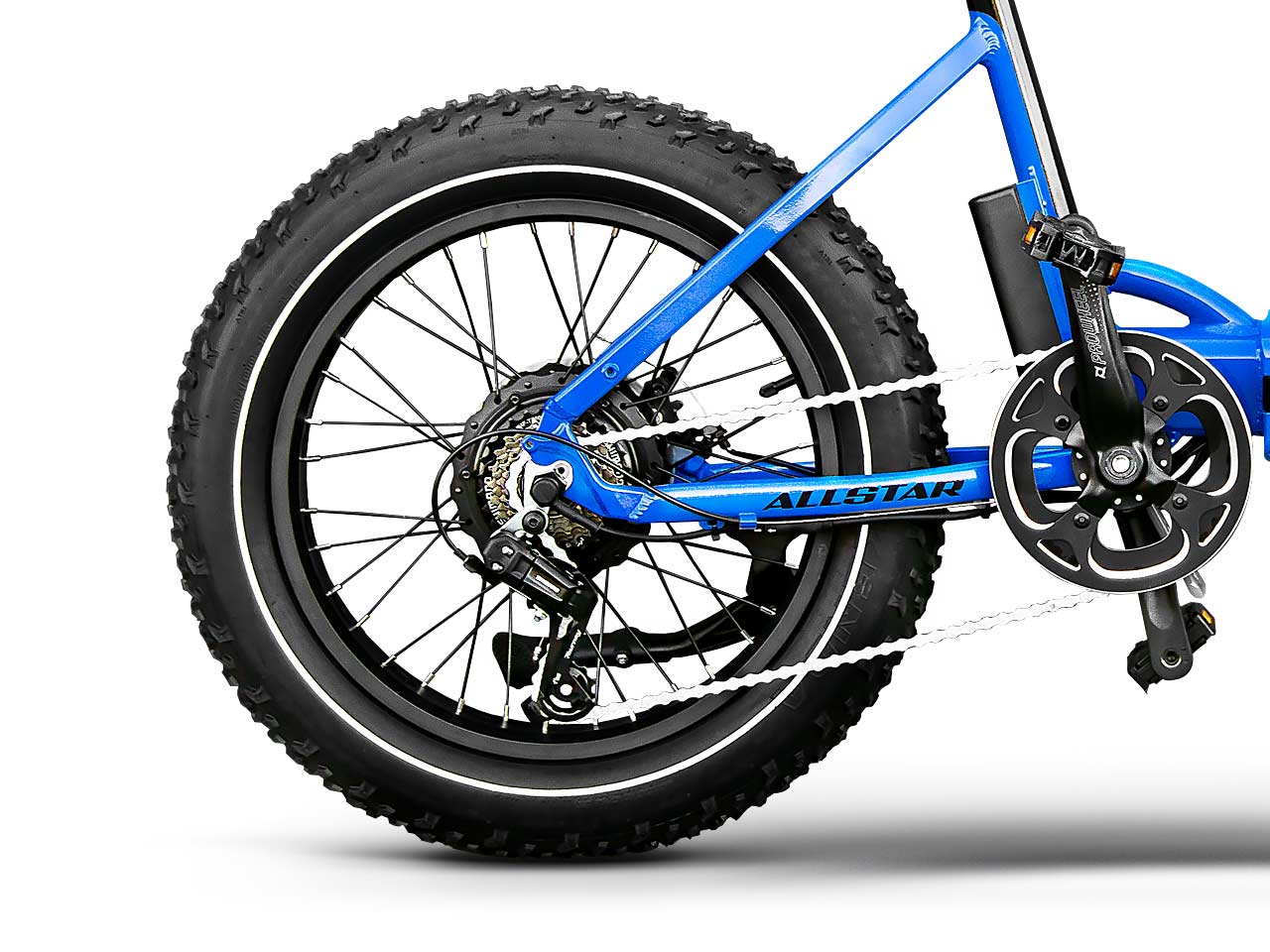

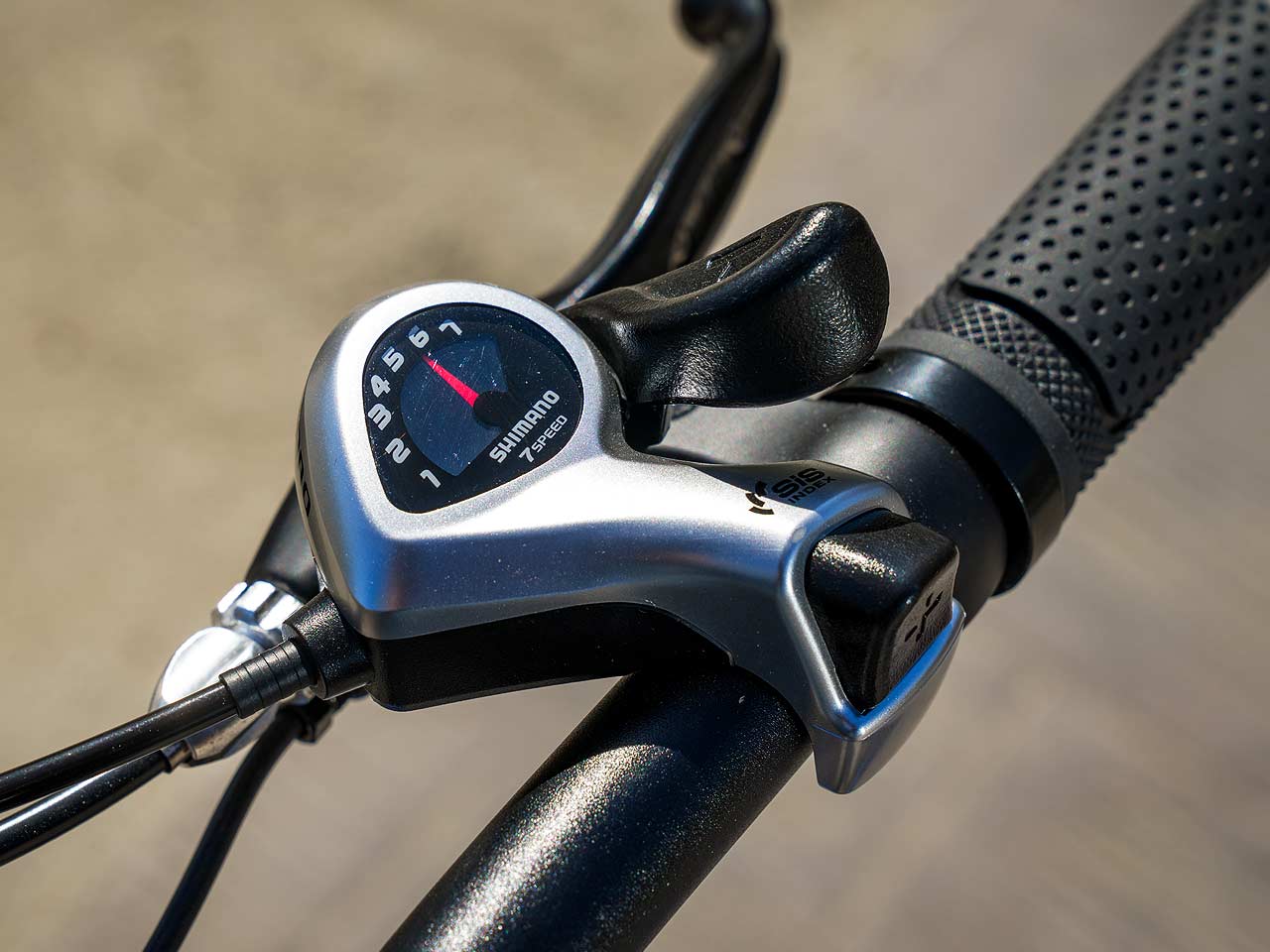

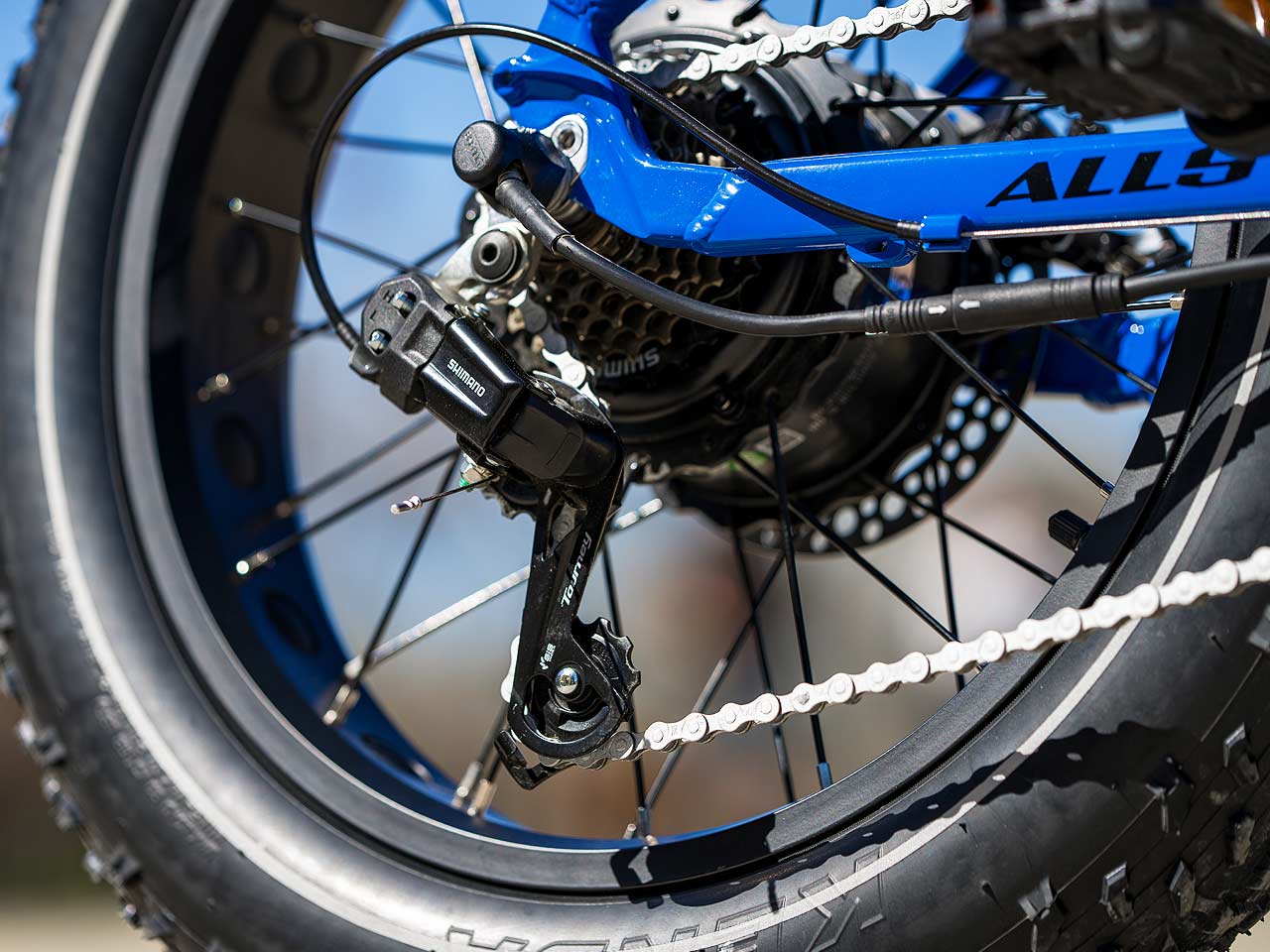

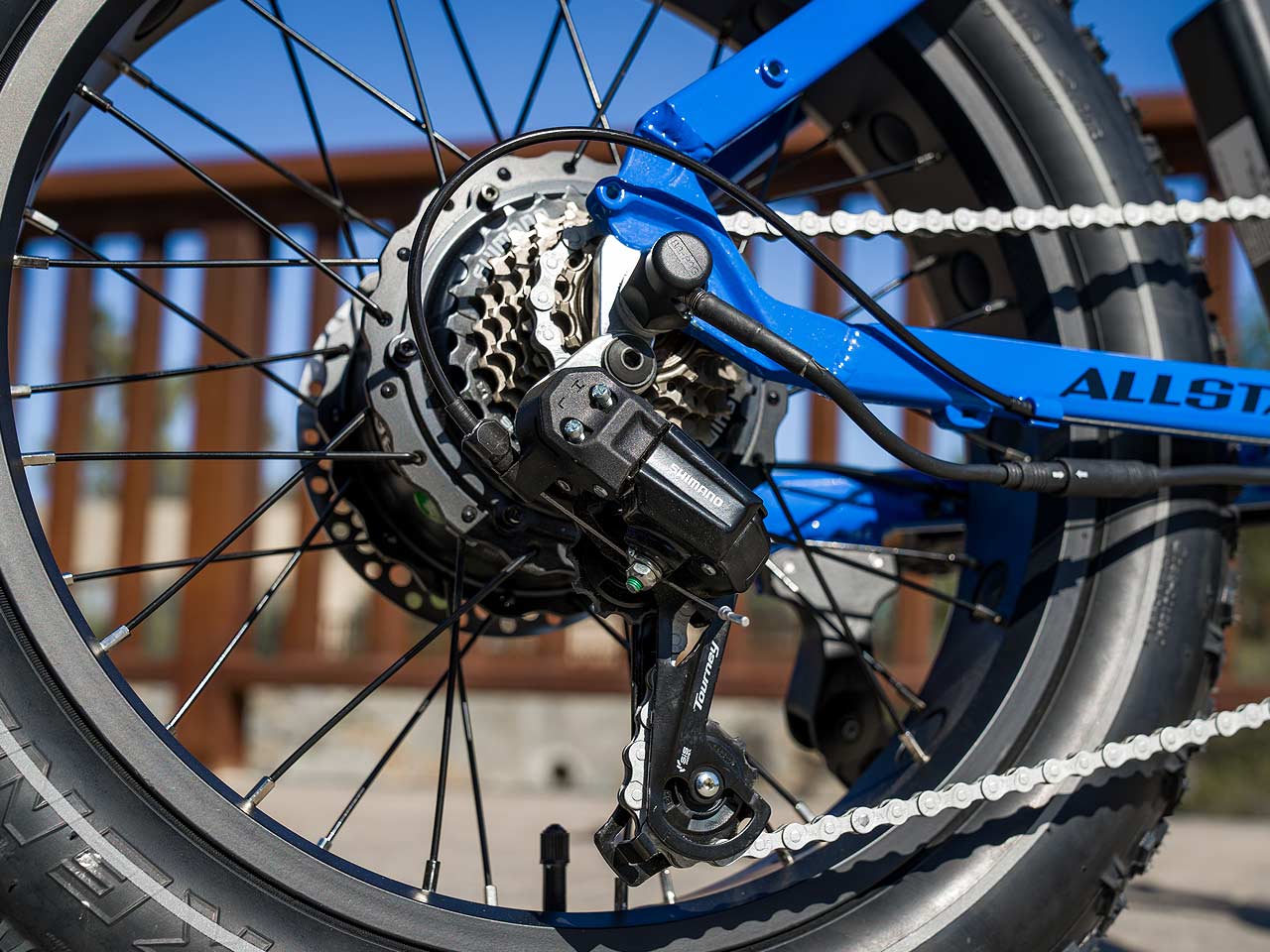

Derailleur:	Shimano 7 Speed Trigger Shifter

CAPACIITIES / DIMENSIONS

Weight Capacity:	290 Lbs
Net Weight:	59 Lbs
Length:	68.89"
Handlebar Height:	47.24" - 51.18" Adjustable
Seat Height:	31.88" - 38.18" Adjustable
Wheelbase:	44.88"
Suggested Rider Height:	5’1” – 6’5”

ADDITIONAL INFO

Warranty:	12 Months Limited

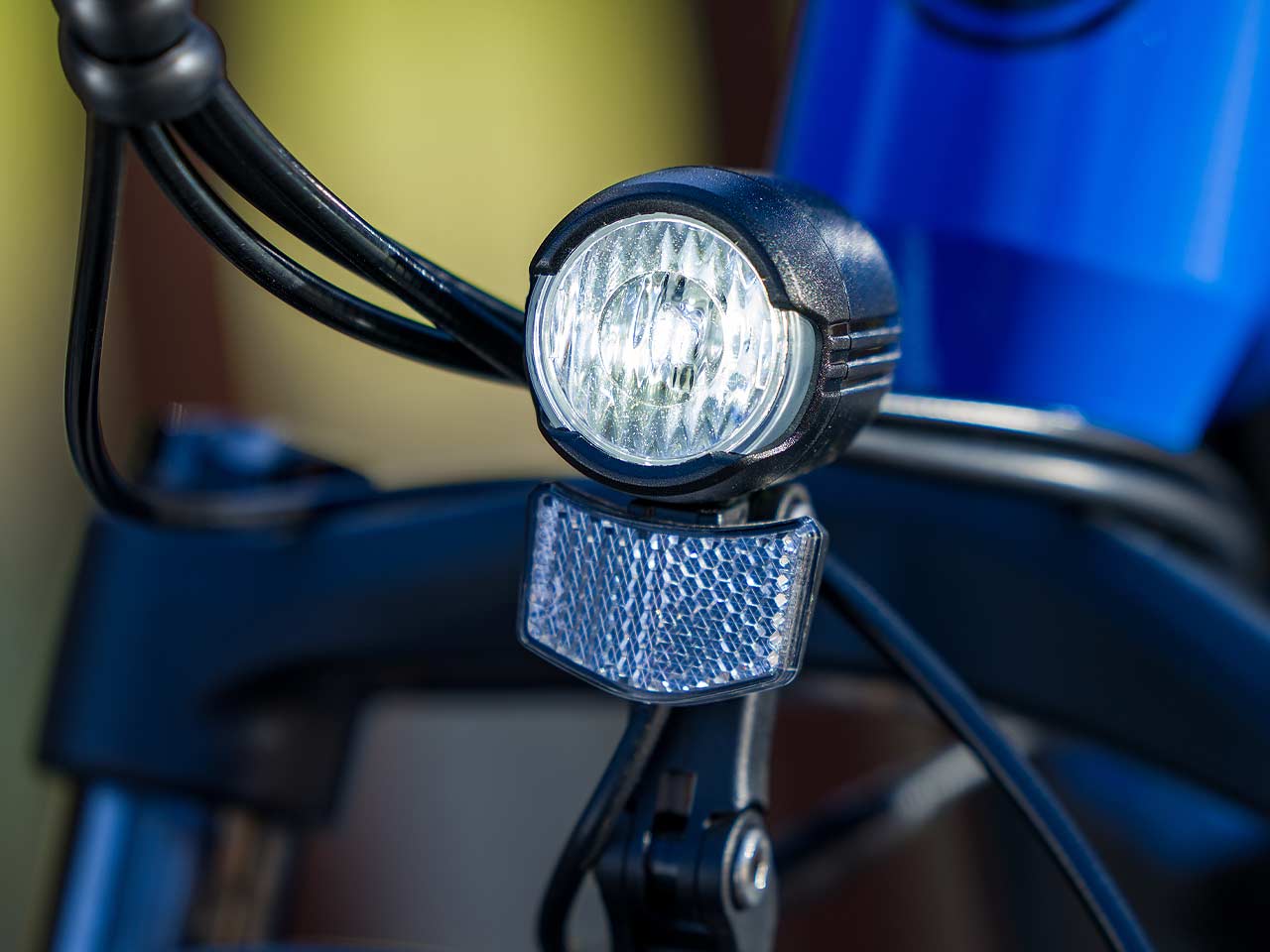

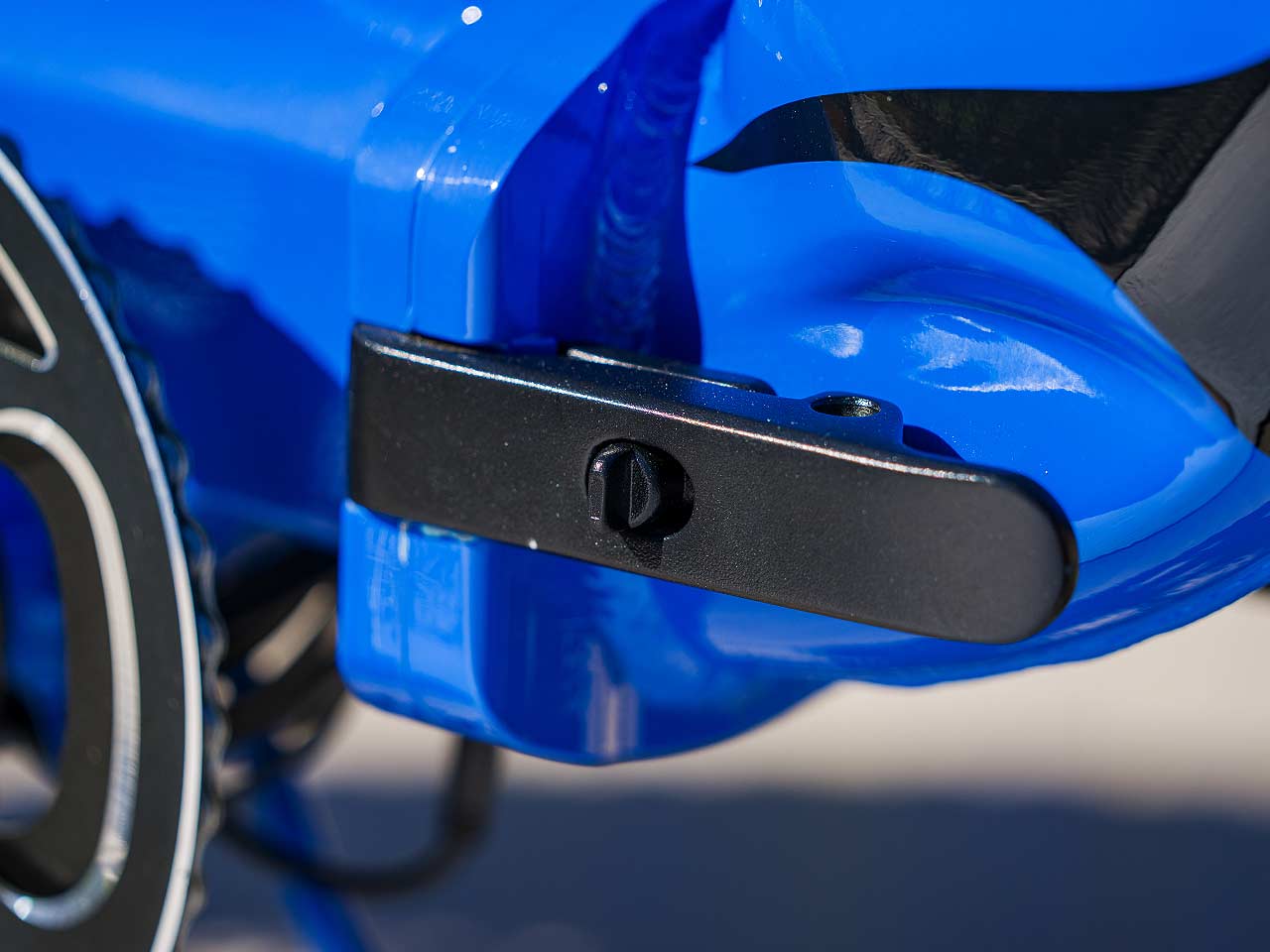

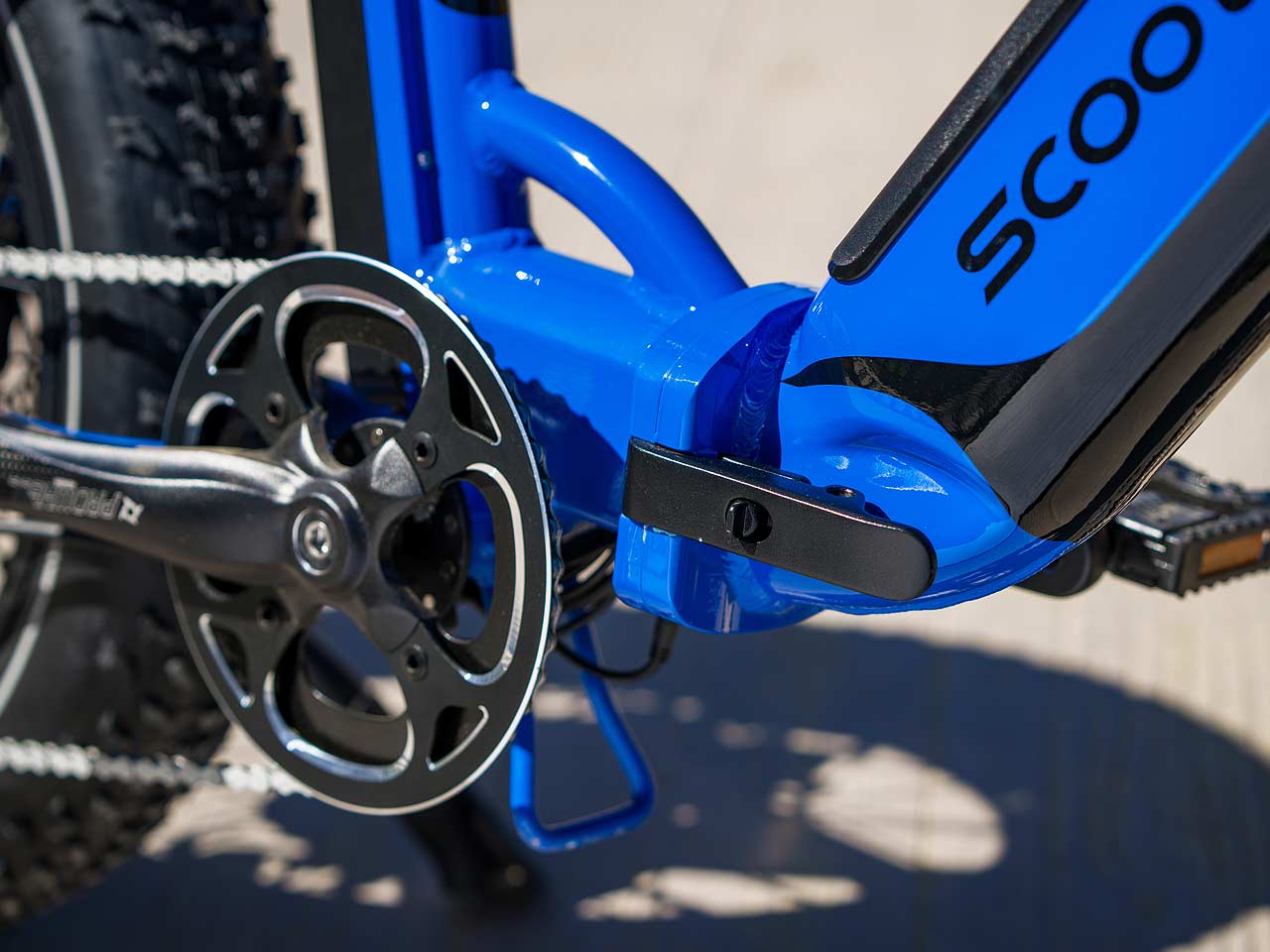

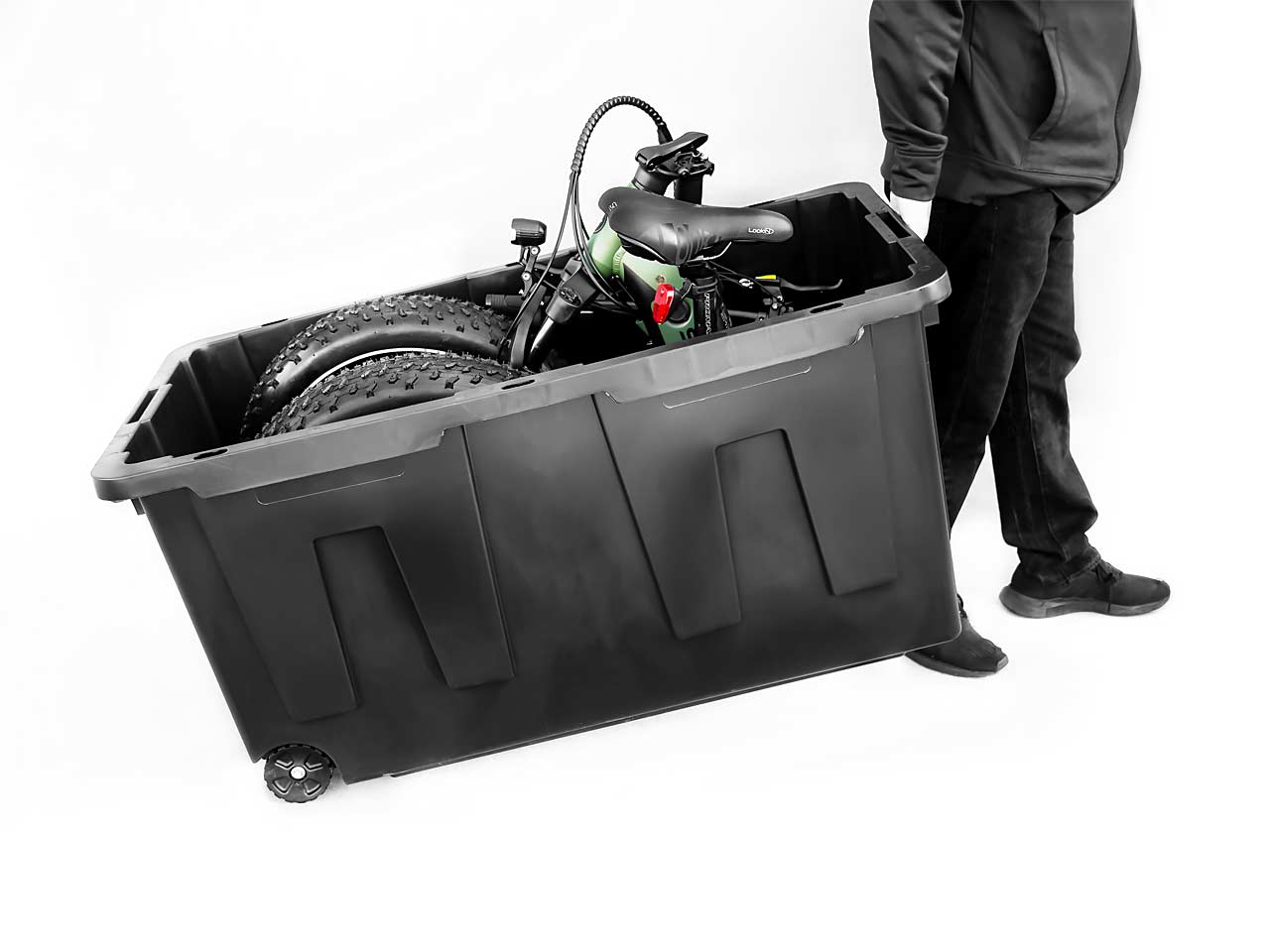

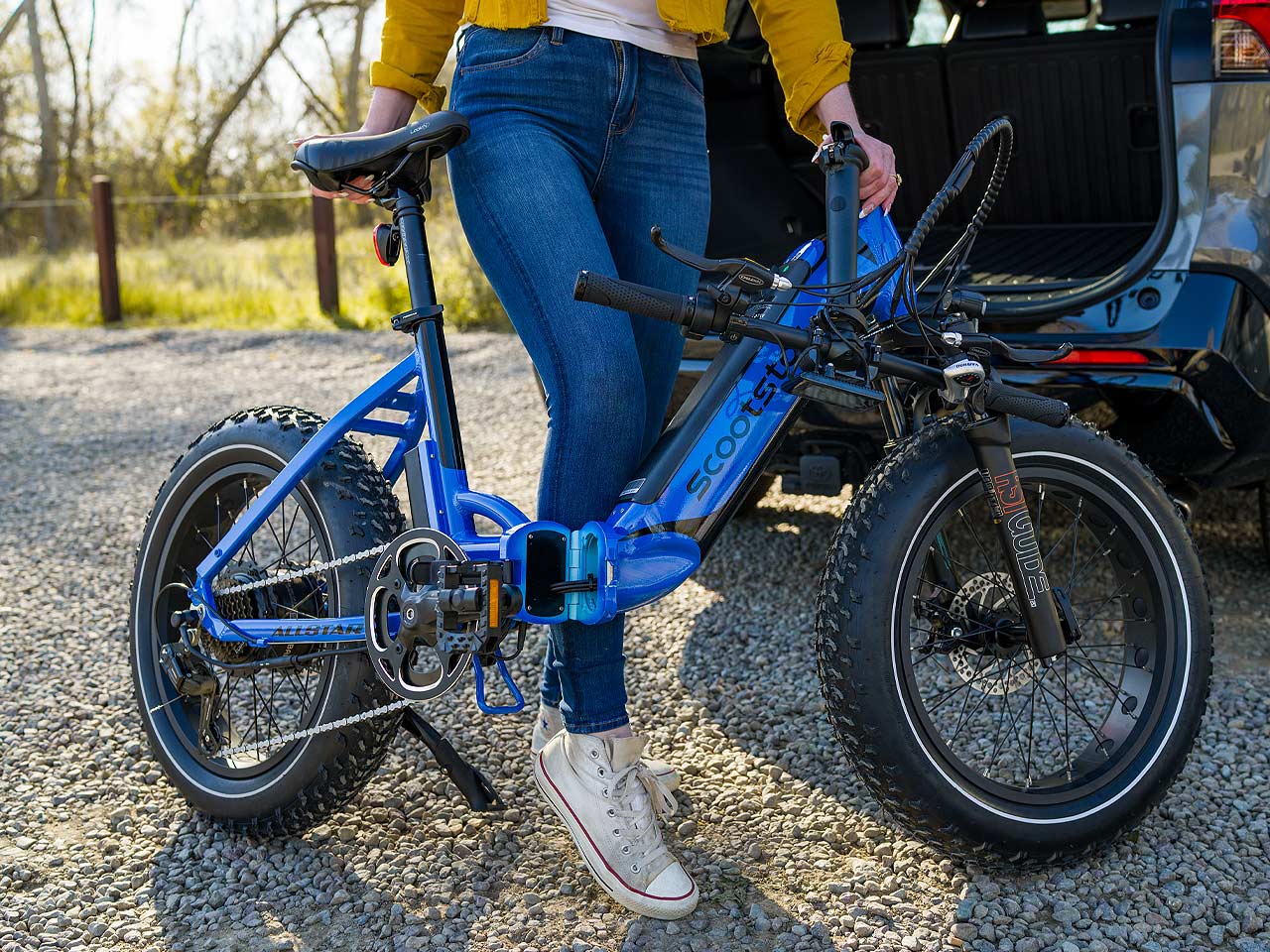

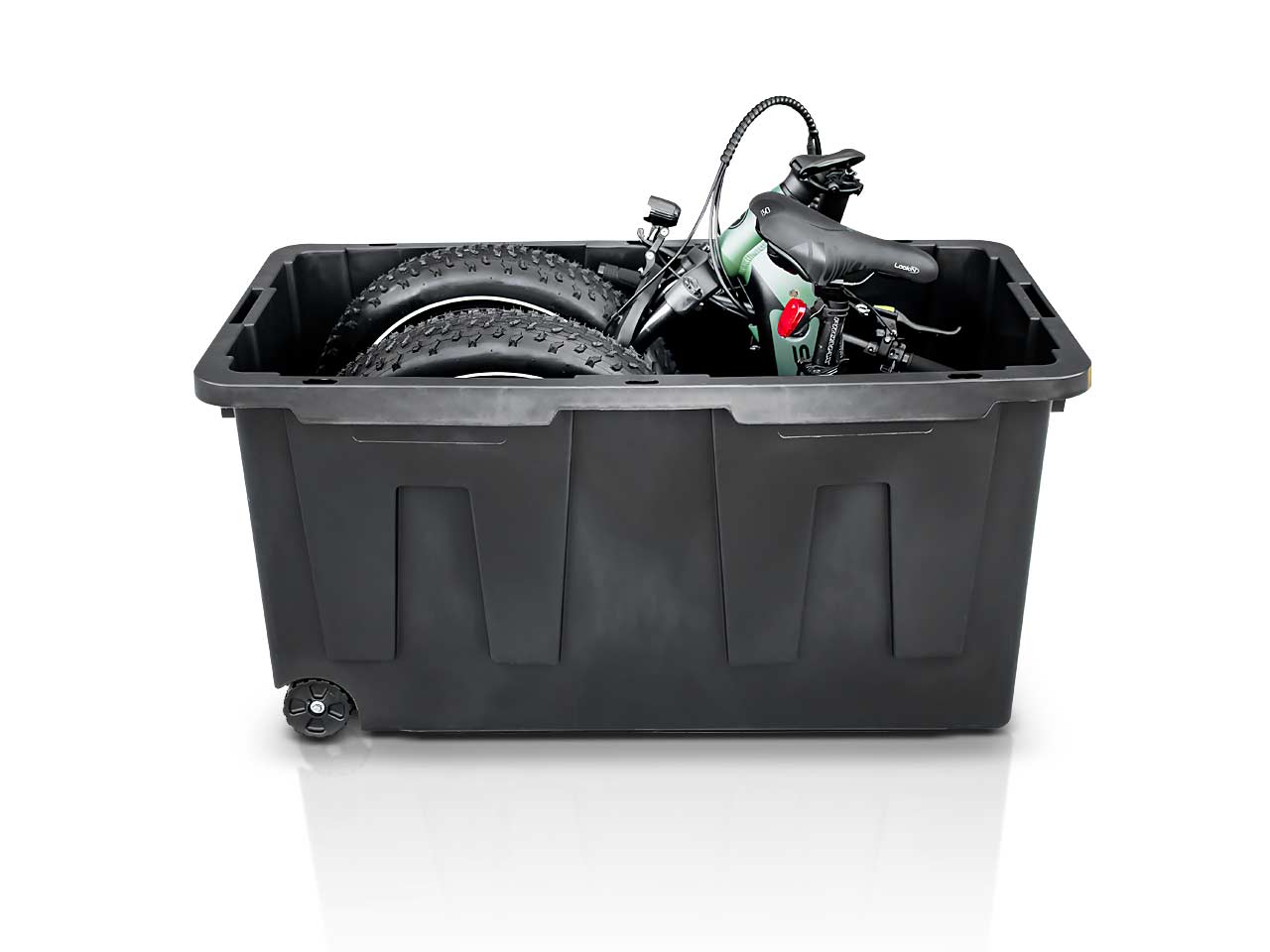

Other Upgrades:	Foldable Ebike / Free Front LED Lights / IP67 Water & Dustproof Electronics & Connectors / Stainless Steel Spokes / Wellgo Aluminum Pedals - Foldable / Thumb Throttle / Aluminum Fenders and Cargo Rack

AVAILABLE COLORS

Matte Green
Matte Black

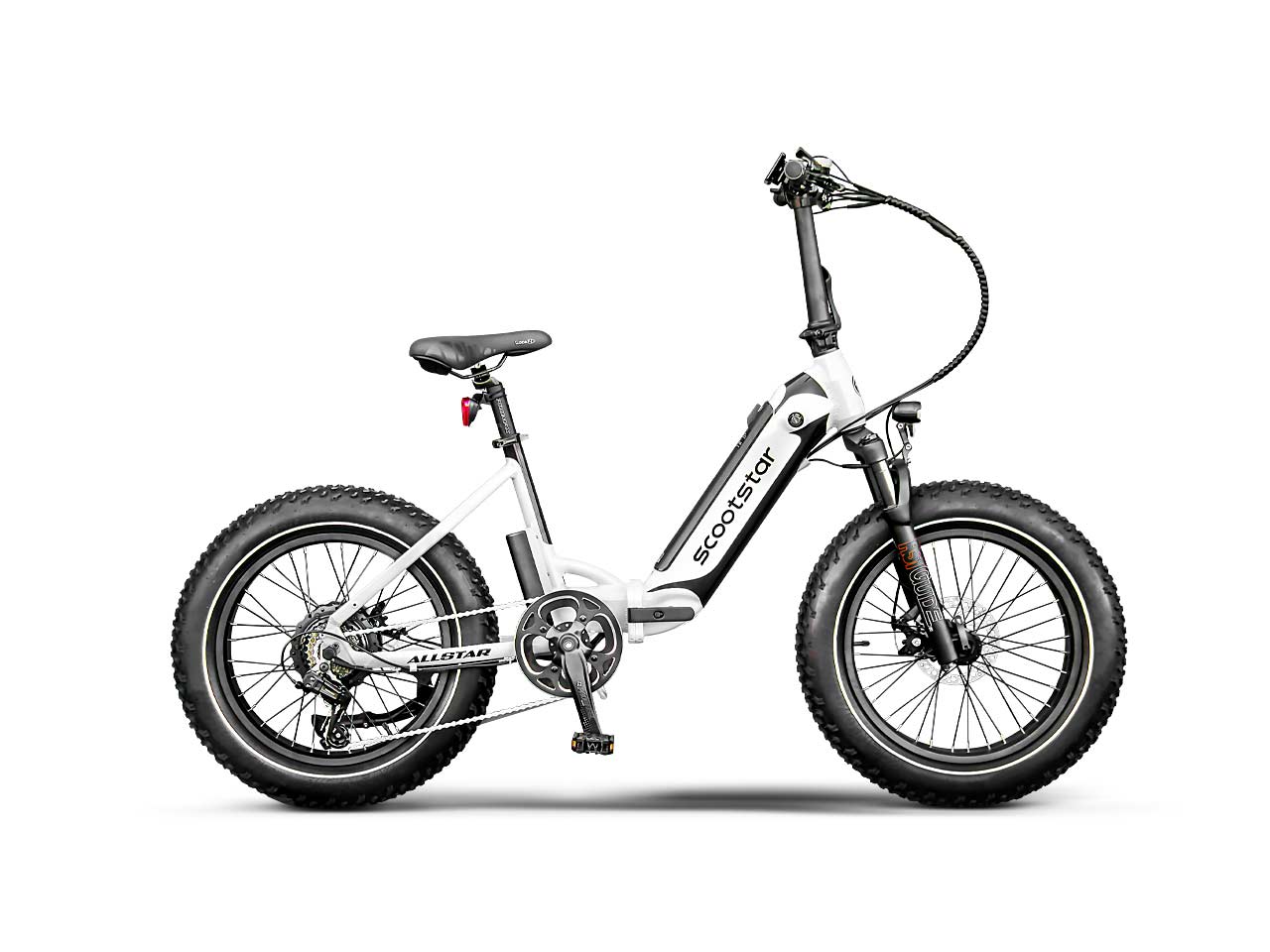

Arctic White

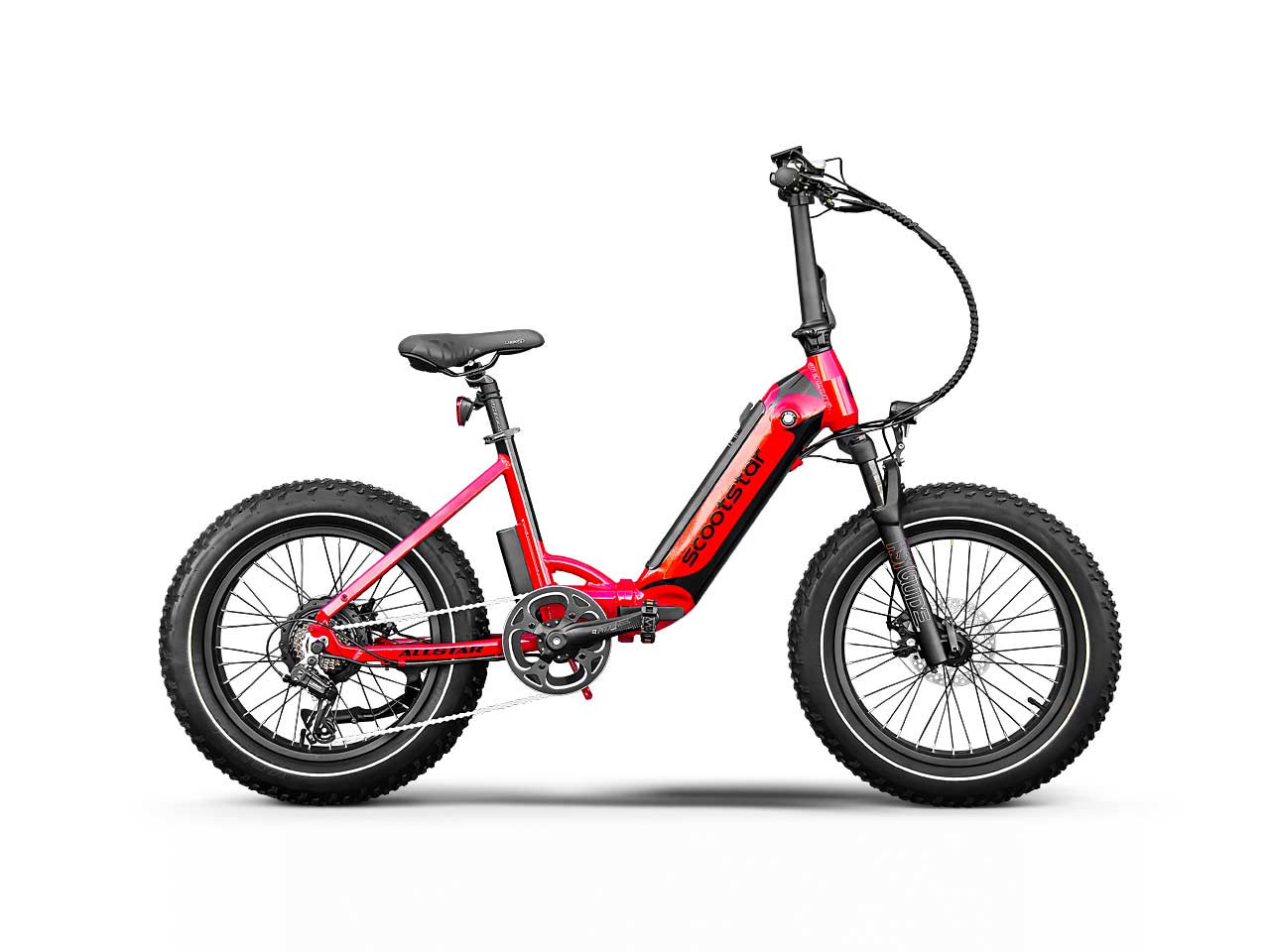

Spice Red

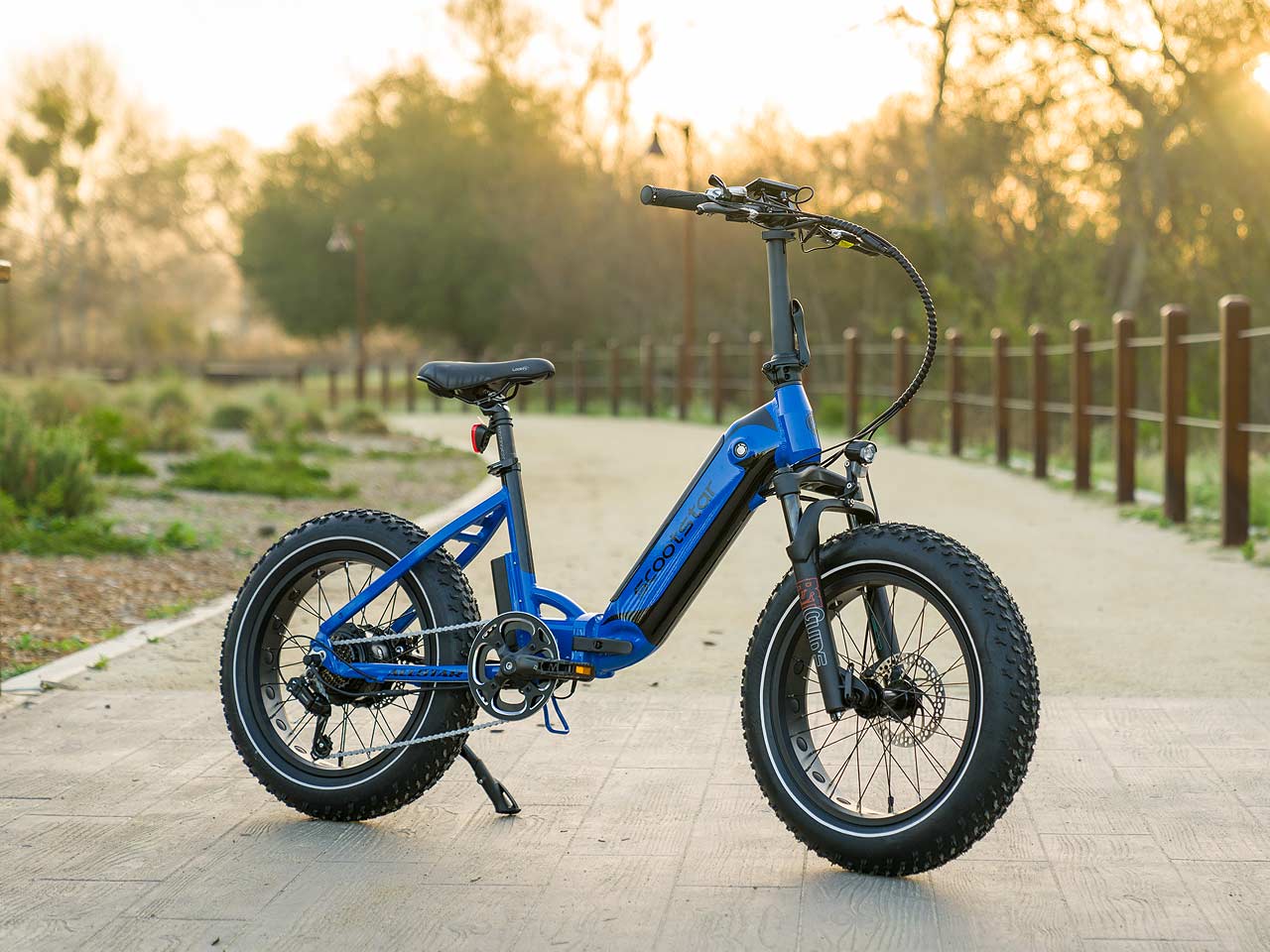

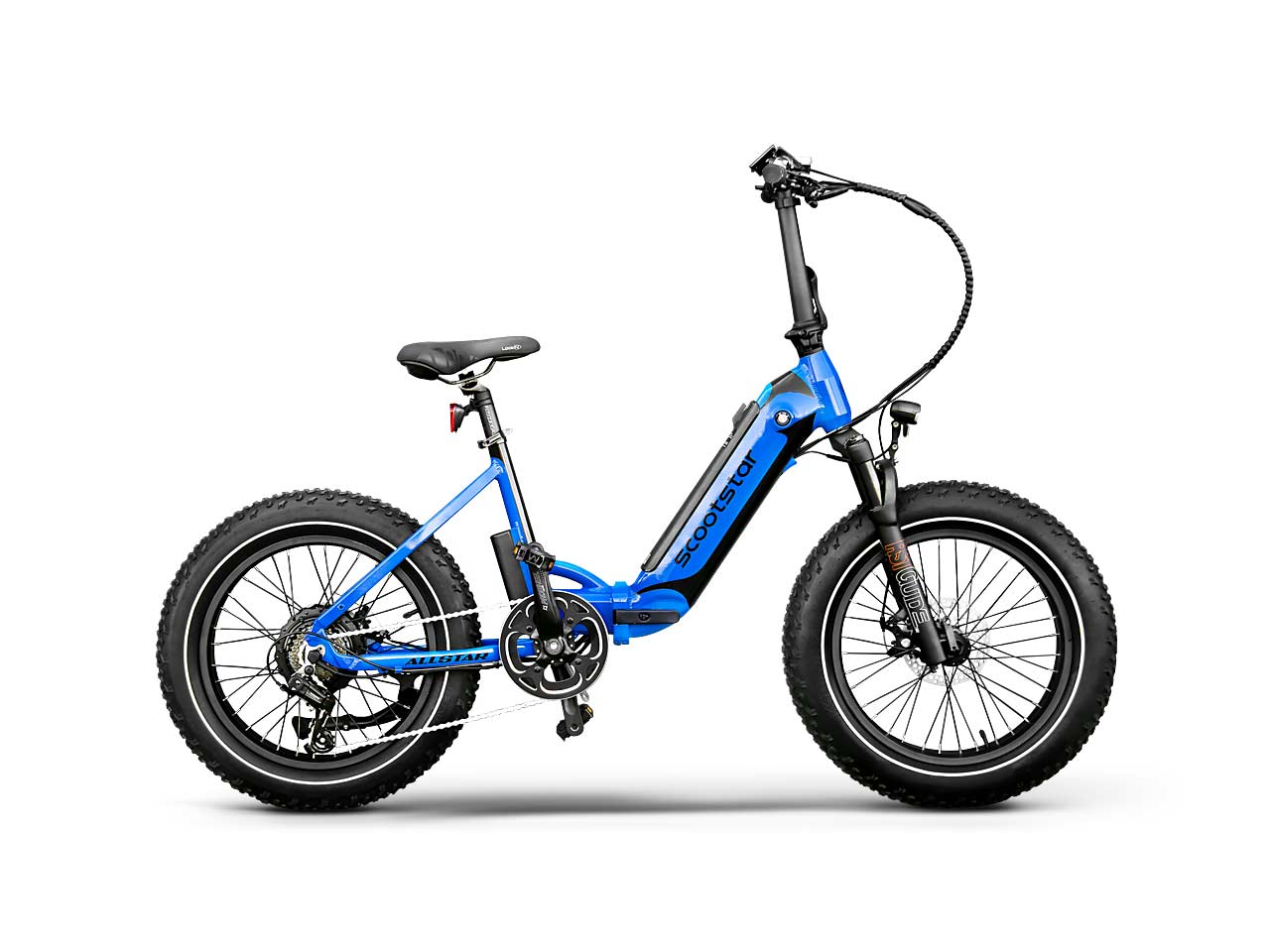

Admiral Blue
All riders should take a safety course. Motorized vehicles can be hazardous to operate. For your safety, always wear a helmet, eye protection and protective clothing. Never engage in stunt or extreme riding. Riding and alcohol/drugs don't mix. Avoid excessive speeds. Be particularly careful on difficult terrain. For safety precautions, all vehicles must be assembled, inspected and maintained by a certified technician for warranty to be valid. Be sure to check and tighten all nuts and bolts prior to use. Also, be sure to check for appropriate engine fluid levels to ensure your vehicle is operating under the recommended conditions prior to use. Based on tests conducted in lab conditions. Actual mileage vary depend on vehicle condition, weather, rider weight and riding style, protective clothing and recommended conditions.

mph

MOTOR TOP SPEED*

ScootStar's AllStar delivers the high-speed electric bikes, and has the power capabilities to match the needs of just about any rider.

20-

MILES RANGE*

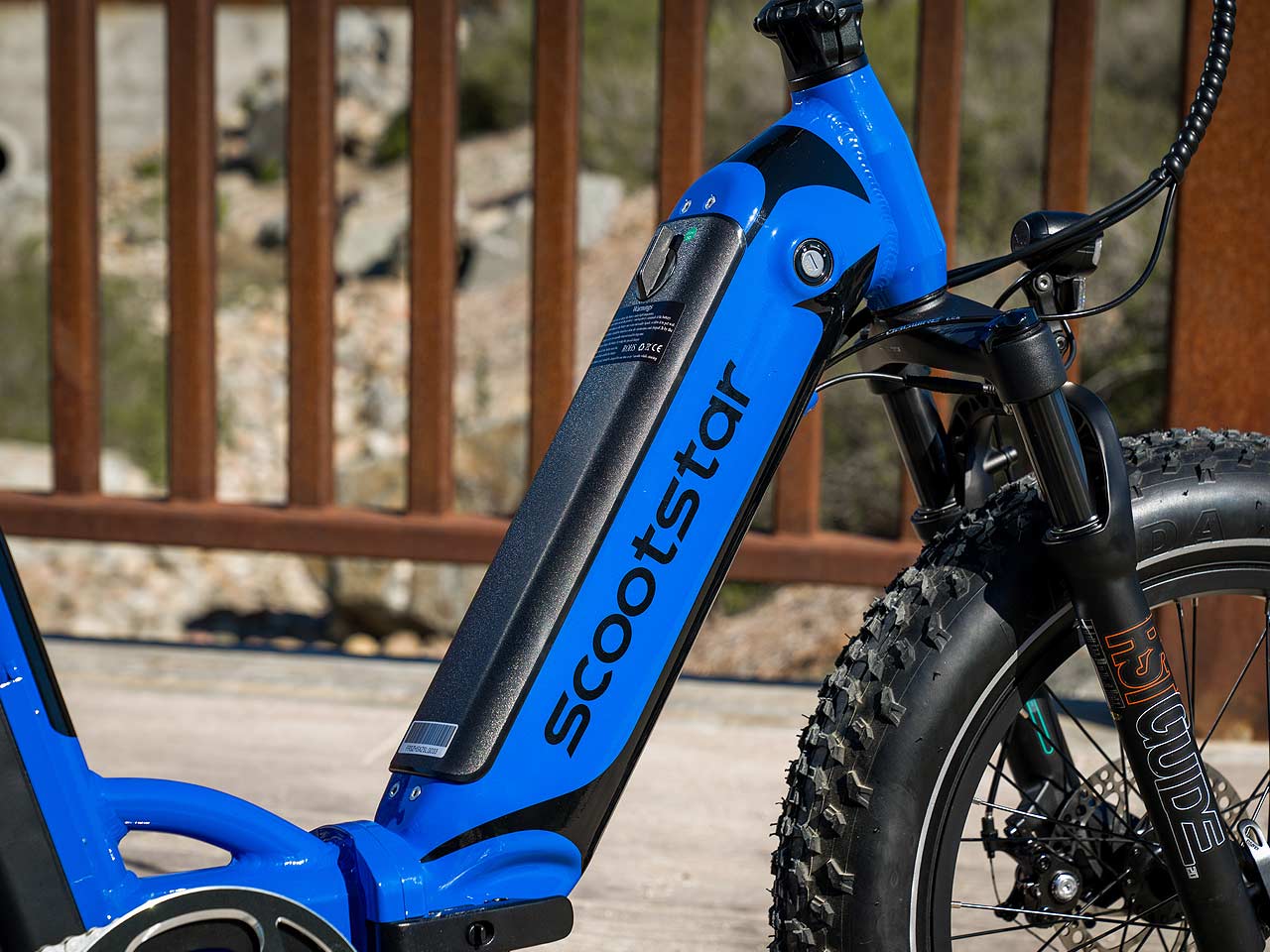

Panasonic Lithium Removable Battery provides high capacity 48V 12.8 Ah cells improve the driving distance of the E-bike and provide convenience to the users.

-6

Charging Hours

Panasonic Lithium Removable Battery has a quick charging technology that could reduce the recharging time from 4 to 6 hours to fully recharge the battery, making the E-bike more convenient for users.

MONTHS WARRANTY

ScootStar offers a 12 months Limited Parts Warranty. The warranty does more than give you peace of mind; it’s a commitment from ScootStar to maintain a high degree of quality, dependability & reliability.
